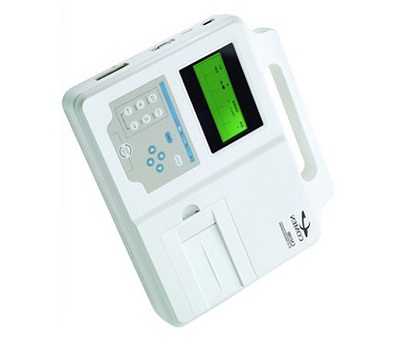

Máy điện tim CM100 Comen
- Tải Báo giá - Tài liệu
- Giới thiệu
- Thông số kĩ thuật
- Cấu hình
- Phụ kiện
- Nhận xét
- Sản phẩm cùng phân khúc giá
Input Circuit: Defibrillator protection built-in
Lead: Standard 12 leads
Acquisition Mode: 12-lead ECG simultaneously
A/D Converter: 12 bits
Measurement range : ±5mVpp
Time Constant: ≥3.2s
Frequency Response: 0.05-150Hz
Calibrating Voltage: 1mV±2%
Sensitivity: 2.5, 5，10，20mm/mV
Input Impedance: ≥50MΩ
Input Circuit Current: ≤0.05mA
Noise Level: ≤15uVp-P
Anti Baseline Drift: Automatic
Filter: EMG Filter 25Hz/35Hz/45Hz/OFF
DFT Filter 0.05/0.1/0.2/0.5Hz
Lowpass Filter 150Hz/100Hz/70Hz
AC Filter 50Hz/60Hz/OFF
CMRR : >100dB
Recording : Mode Auto: 1CH
Manual: 1CH
Power Supply: AC:100V-150V / 220V-240V, 50/60Hz
Built-in rechargeable Li-ion battery voltage=14.4V
More than 2 hrs continuous work under batter supply
Recorder: Thermal Printer
Paper Style: Rolled or folded
Record Pater: 50mm x 20m
Paper Speed: 5mm/s, 10mm/s, 25mm/s, 50mm/s
Dimension: 32mm x 28mm x 65mm
Weight: 3kg (with battery)
Display: 192 x 64 pixels LCD
External I/O: Input: ≥100kΩ: Sensitivity 10mm/V±5%
Output: ≤100Ω Sensitivity 1V/V±5%
Optional function: ECG working station
Lead: Standard 12 leads
Acquisition Mode: 12-lead ECG simultaneously
A/D Converter: 12 bits
Measurement range : ±5mVpp
Time Constant: ≥3.2s
Frequency Response: 0.05-150Hz
Calibrating Voltage: 1mV±2%
Sensitivity: 2.5, 5，10，20mm/mV
Input Impedance: ≥50MΩ
Input Circuit Current: ≤0.05mA
Noise Level: ≤15uVp-P
Anti Baseline Drift: Automatic
Filter: EMG Filter 25Hz/35Hz/45Hz/OFF
DFT Filter 0.05/0.1/0.2/0.5Hz
Lowpass Filter 150Hz/100Hz/70Hz
AC Filter 50Hz/60Hz/OFF
CMRR : >100dB
Recording : Mode Auto: 1CH
Manual: 1CH
Power Supply: AC:100V-150V / 220V-240V, 50/60Hz
Built-in rechargeable Li-ion battery voltage=14.4V
More than 2 hrs continuous work under batter supply
Recorder: Thermal Printer
Paper Style: Rolled or folded
Record Pater: 50mm x 20m
Paper Speed: 5mm/s, 10mm/s, 25mm/s, 50mm/s
Dimension: 32mm x 28mm x 65mm
Weight: 3kg (with battery)
Display: 192 x 64 pixels LCD
External I/O: Input: ≥100kΩ: Sensitivity 10mm/V±5%
Output: ≤100Ω Sensitivity 1V/V±5%
Optional function: ECG working station
