Specifications for S2 High-Performance Color System
page 2 of 14
General Specification
The high performances of the SonoScape
S2 stem from the advanced ultrasound
Doppler imaging technologies that include
full digital beam-former, wide dynamic range,
multi-beam processing, etc.
The ergonomic user-friendly design enables
user to customize the system according to
the specific application needs, and the
graphic exam icon assure you familiar with
the system in few minutes.
2. Advanced Technologies
PC platform
Full Digital Beam Processing
Compound Imaging
Tissue Harmonic Imaging
Panoramic Imaging
Trapezoid Imaging

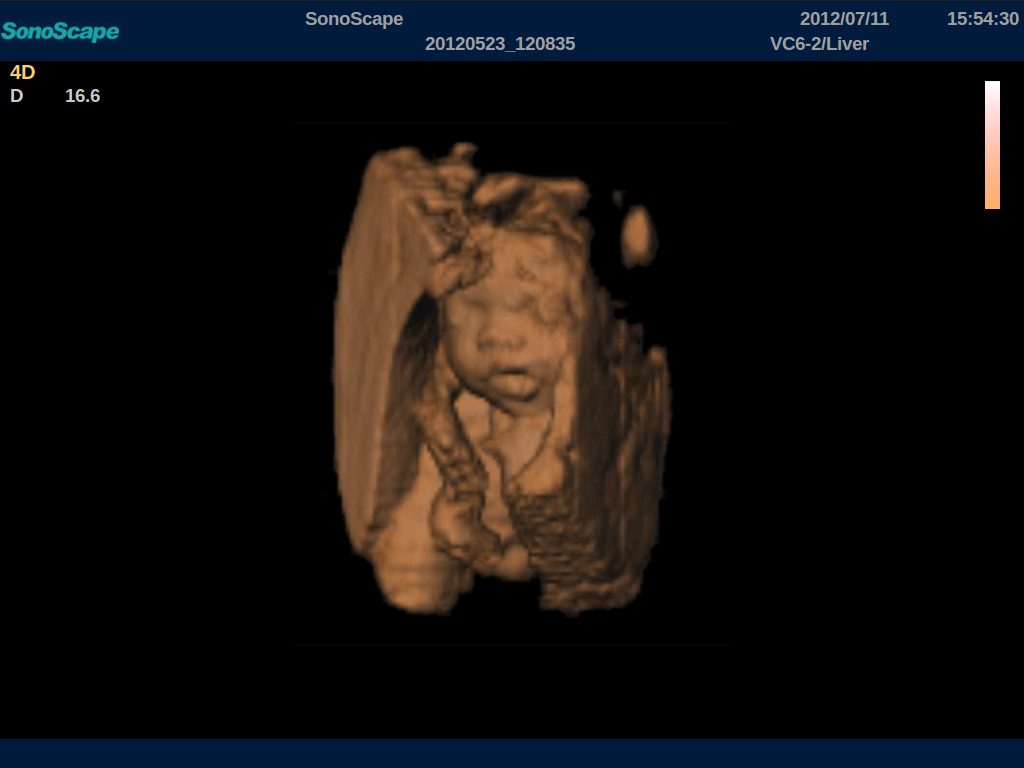

4D Imaging
Dicom 3.0
Intelligent Upgrade
Graphic Exam Icon
Remote Maintenance
3. Standard Configuration
B Mode
Multi-B Mode
M Mode
Color Mode
DPI Mode
PW Mode
THI Mode
Cardiac Package
Gynecology Package
Urology Package
Small Part Package
Vascular Package
Orthopedic Package
Compound Imaging
Trapezoid Imaging
ECG Module
Dop Auto Trace
µ-scan
IMT Function
Dicom 3.0
Internal Workstation
4. Optional Functions
CW Mode
4D Imaging
Triplex
Panoramic Imaging
Anatomic M Mode
Color M Mode
5. Optional Components
Power Adaptor
UPS Power
Biopsy Guide
Color Ink-jet Printer
B/W Video Printer Specifications for S2 High-Performance Color System
page 3 of 14
External DVD Burner
Foot Switch
Special Trolley
Transducer Cable Holder
6. Sweep Width/Angle
Linear Array: Maximum 46mm
Convex Array: ≥70°
Phased Array: ≥90°
Micro convex Array: ≥135°
4D probe: 70°
7. Scanning Methods
Electronic Convex Sector
Electronic Linear
Electronic Phased Array Sector
4D Automatic Scanning
Electronic Endocavity
8. Applications
Small Parts(Thyroid, Brest, Testicles and
Superficial)
Abdominal(Liver, Spleen, Kidney,
Pancreas)
Vascular(Carotid, Peripheral vessel)
Cardiology
Obstetrical(Uterus, Appendages, Fetus)
Gynecological
Urological
Musculoskeletal
Craniocerebral
Emergency(optional)
ICU(optional)
Anesthesia (optional)
9. Operating Modes
B-Mode
M-Mode
THI-Mode
Color Flow Mode(CFM)
Doppler Power Imaging(DPI)
PW Mode
CW Mode(optional)
Panoramic Imaging(optional)
4D Imaging(optional)
Steer M-Mode(optional)
Color M Mode(optional)
10. Display Modes
B、Dual B、4B
B+Color、Dual B+Color
B+DPI、Dual B+DPI
M、B+M、Dual B+M
B+PW、Dual B+PW
B+color+PW
B+DPI+PW
B+CW、Dual B+CW(optional)
B+color+CW(optional)
B+DPI+CW(optional)
B+ Color M (optional)
B+ Anatomic M(optional)
B+ Multi-M(optional) Specifications for S2 High-Performance Color System
page 4 of 14
Panoramic Imaging(optional)
Trapezoid Imaging
Compound Imaging
4D Imaging(optional)
11. System Menu Setting
System Setting
General Setting
Hospital Name
Language Setting
English
Simple Chinese
Spanish(Optional)
Russian(Optional)
French(Optional)
Italian(Optional)
German(Optional)
Turkish(Optional)
Automatic Response to Freeze
Trackball Sensitive
Set Time/ Date
Letter form
Audio Volume
Display
TGC Curve
Patient Information
Clipboard Automatic Open to Freeze
Parameters Setting
B Mode
M Mode
Color Mode
DPI Mode
PW Mode
CW Mode
Storage
Storage Mode:depending on the
frames
Storage Region:Full Screen,
Imaging Area
Save to USB
Peripheral Equipments
Clip Format:NTSC、PAL
Internet setting
IP Adress
Subnet Mask
Default Gateway
DNS Service
Local DICOM AE Title
Printer Setting
Annotation Setting
Annotation Library Setting
Display Language:Current
Language, English
Self-defined Entry
Body Mark Setting
Body Mark Library Setting
Default Display Position
Measurement Setting
General Setting
Unit:Metric, British
Cardiac Cycle
UA Result:Last, Minimum,
