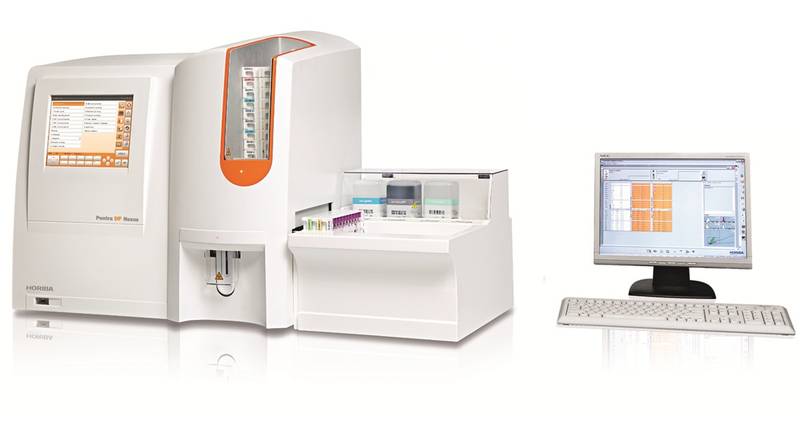

Máy xét nghiệm huyết học Pentra DF Nexus Horiba ABX
- Tải Báo giá - Tài liệu
- Giới thiệu
- Thông số kĩ thuật
- Cấu hình
- Phụ kiện
- Nhận xét
- Sản phẩm cùng phân khúc giá
Overview
Autoloader with continuous loading capability
Rack compatibles with most pre and post analytical systems
Automatic reflex testing
Double DIFF Matrix
Expert validation station
DHSS* technology
(*HORIBA Medical Patent)
Features
Pentra DF Nexus
Methods of measurement: cytochemistry , impedance and flow cytometry
Balance concept : automatic control of the leucocyte count based on 3 independent principles
DHSS: focused flow cytometry and sequential measurement (impedance and absorbance)
Automatic reflex testing: selective and programmable (hematology parameters, alarms and flags, demography)
Rack rotation mixing of samples: smooth and efficient
Quality: complete traceability for each run in agreement with the accreditation requirements
Autoloader with continuous loading capability
Rack compatibles with most pre and post analytical systems
Automatic reflex testing
Double DIFF Matrix
Expert validation station
DHSS* technology
(*HORIBA Medical Patent)
Features
Pentra DF Nexus
Methods of measurement: cytochemistry , impedance and flow cytometry
Balance concept : automatic control of the leucocyte count based on 3 independent principles
DHSS: focused flow cytometry and sequential measurement (impedance and absorbance)
Automatic reflex testing: selective and programmable (hematology parameters, alarms and flags, demography)
Rack rotation mixing of samples: smooth and efficient
Quality: complete traceability for each run in agreement with the accreditation requirements
Specifications Technical
| Weight | 110 kg |
| Power requirements | 100 to 240 V / 50 Hz to 60 Hz - 800 VA |
| Dimensions | 73 x 120 x 55 (H x W x D) cm |
| Printer | Laser |
| Throughput | 120 tests/hour |
| Data processing | Color LCD 12.1 in 5 x USB, RS232C, Mono and Bi-directional connection |
| Compliance | ASTM protocol |
Samples
| 120 tests/hour | |
| Parameters (32) | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PCT*, PDW*, NEU, LYM, MON, EOS, BAS, ALY, LIC, IMM, IMG, IML: (% and #) |
| Graphs | High-definition DIFF matrix, PLT, RBC, WBC/BAS curves |
| Volume | Manual mode: 130 µL Automatic mode: 200µL |
| Stability | Up to 48 hours for CBC/DIFF |
| Operating sample mode | Autoloader 15 racks (150 tubes) capacity Sample mixing in end-over-end rotation mixing Open tube STAT mode |
| Identification | Alphanumeric, Bar-code reader (internal and external) Automatic printing in indelible ink on each slide (3 lines) |
Results
| Parameters | Presicion (CV %) | Linearity |
| WBC | < 2 | 0 - 150 x 10³/mm³ |
| RBC | < 2 | 0 - 8 x 106/mm³ |
| HGB | < 1 | 0 - 24 g/dL |
| HCT | < 2 | 0 - 67% |
| PLT | < 5 | 0 - 1900 x 10³/mm³ |
| PLT (PLT concentrate) | 0 - 2800 x 10³/mm³ | |
| LYM | < 5 | -- |
| MON | < 10 | -- |
| NEU | < 3 | -- |
| EOS | < 15 | -- |
| BAS | < 20 | -- |
