Specifications

1k2 High Resolution Imaging Chain

Dynamic Range Management (DRM)

Tri-Mode 9 or 12 Inch Image Intensifier

Digital Imaging Rotation

1k x 1k CCD Camera

Full Frame Capture
- AutoTrak

Automatic Brightness Stabilization

Bolus Chase Preset
- 30 Pulse/second
-

Recording Playback up to 30 FPS

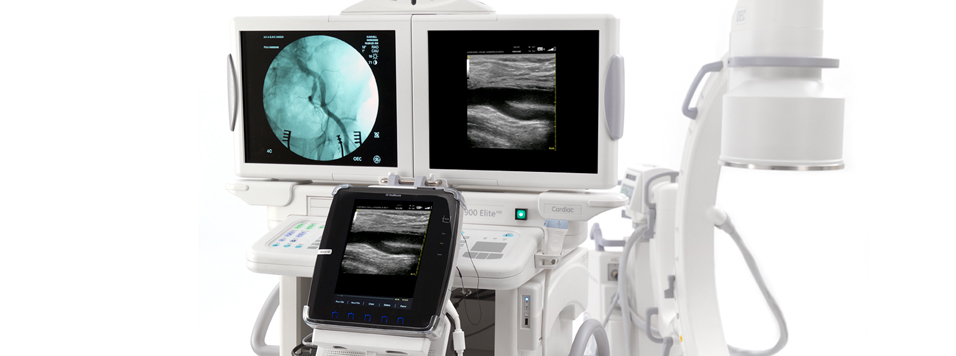

Dual 18 Inch Anti-Glare Touch Flat Panel Displays on an Articulating Arm

15kW power generator – 60kHz high frequency- Up to 120Vp

Rotating anode X-ray tube

Digital Image Rotation

Fluoro Mode

Pulsed Fluoro Mode

High Level Pulsed Fluoro

Digital Spot Mode

Radiographic Mode

Easy archiving and documentation

Physician controlled x-ray footswitch and handswitch

High-Power pulse anode

Dynamic studies at up to 30 pps without motion artifact

Dicom 3.0 – Print

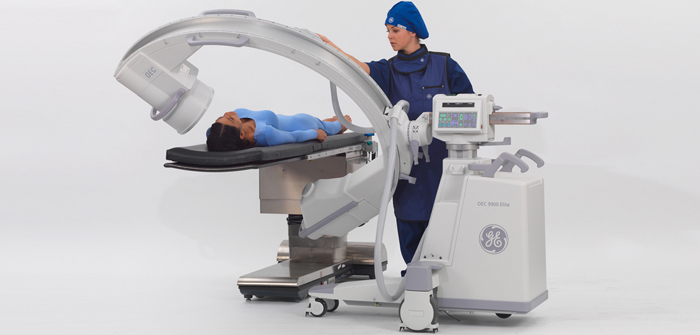

The OEC 9900 Elite is available in a number of configurations, allowing you to select the product features that best meet your clinical needs:

Orthopedics, General Surgery and Pain Management

9900 GSP

9900 ESP

9900 PMCare 8 F/S Digital Subtraction


9900 ESP 15 F/S (12 F/S @ 50 Hz)

For orthopedics, general surgery, GI, pain management and other general applications.

Endovascular

9900 Basic vascular 8 F/S


9900 Vascular MTS 30 F/S (25 F/S @ 50 Hz)

For vascular surgery and interventional vascular applications.

12/9/6” (31/23/15 cm) tri-mode image intensifier: A larger field of view than our standard 9/6/4.5” (23/15/10 cm) image intensifier, for many vascular applications or wherever a larger field of view is required.

Cardiac Surgery and Mobile Cardiac Cath lab/EP lab

9900 Cardiac 30 F/S (25 F/S @ 50 Hz)

For complex coronary, peripheral or abdominal angiography.

Super-C design: Larger than our standard C, the Super C design provides greater clearance and greater range of overscan for the oblique angulations required in both cardiac and spine work (9” (23 cm) I.I. only).

9900 MD C-arm

9°/sec. Lateral Motorized Rotation.

9” (23 cm) I.I., 12” (31 cm) I.I.

RUI (Remote User Interface – Table Side Control Panel  All 9900 Mainframe Controls.
- Image Review Functions.
- C-arm Motion Joystick Control. – Motorized Vertical Lift.

Contact/Collision Detection.

C-arm Angle Display – realtime and saved images.

Enhanced X-ray tube housing cooling system.

Integrated Surgical Navigation

Realtime electro magnetic tracking of instruments on fluoroscopic images.

Available on all configurations except Cardiac, MD and 12 inch.

Ability to track two instruments simultaneously.
